SDH XL Rear 157mm X 12mm Conversion Kit

48.00

SDH XL Rear 157mm X 12mm Conversion Kit

48.00

Hadley Rear SDH Hub 157mm X 12mm Thru-Axle Conversion Kit

Converts Hadley (SDH XL), H600150 150mm hubs (2001-2017) with Shimano style freehub

Hadley Part No. H500539-CLR

More Info

Quantity:
3 available
Add To Cart

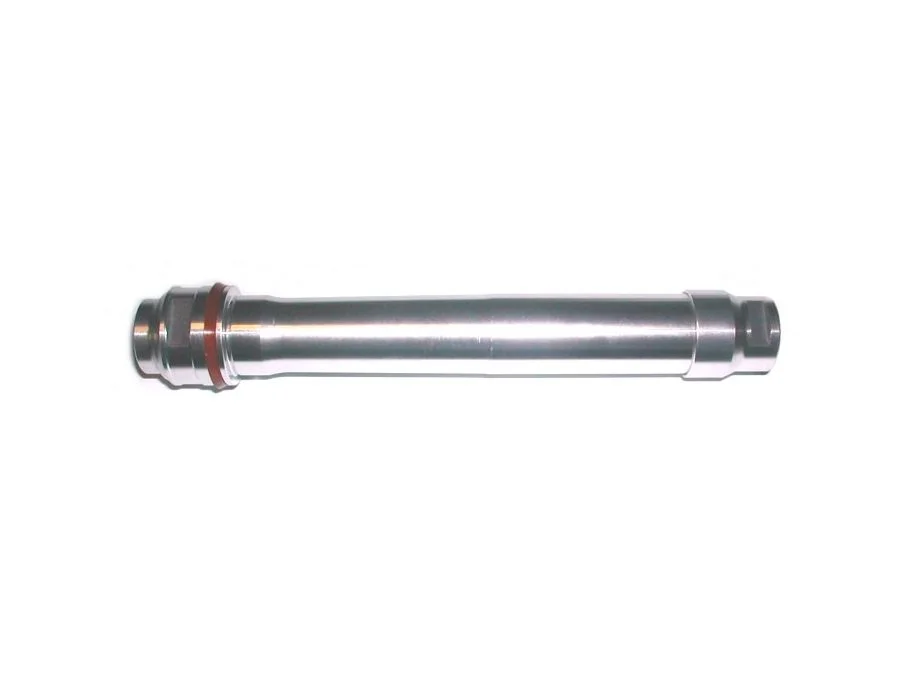

Hadley Rear SDH Hub 157mm X 12mm Thru-Axle Conversion Kit

Converts Hadley (SDH XL), H600150 150mm hubs (2001-2017) with Shimano style freehub

Hadley Part No. H500539-CLR

Fits Hadley SDH XL Hub & H600150 (150mm Spacing)

Note: Hub will have SDH XL or H600150 marked above the Hadley logo

Does not fit SDH or H600135 hubs

Fits Hadley hubs built between 2001 to 2017 (if your hub is 2018 and newer it will use the Shimano/XD 2018 conversion)

See photo of gold and red hub, the gold hub on the left is the 2001 to 2017 where the end cap tapers out to a larger diameter at the base, note the inside diameter of the white plastic retainer is larger where the six pin spanner holes are right next to the inside diameter. The red hub on the right has the 2018 and newer Shimano/XD freehub where the end cap is a straight cylinder and does not flare out to a larger diameter, also note the white plastic retainer has a smaller inside diameter and the six pin spanner holes are farther from the inside diameter. If you have the gold style hub this conversion will fit this hub, if you have the red style hub then you have the 2018 and newer Shimano/XD freehub and need the XD drive conversion H500700-CLR sold under the Hadley XD Driver (XX1/X0) Conversion Kits & Parts.



(New DH standard for Norco, Santa Cruz, Trek & others)

Clear Anodize Finish

Fits Hadley (SDH XL), H600150 (SDH 150) Hubs

Hadley Part No: H500539-CLR

Special Tools Needed to install

Recommend using Hadley Tools to remove existing end caps.

Recommend using Hadley 21mm and 15mm open end thin wrenches

or you can use a ParkTool 15mm PW-5 pedal wrench in place of the Hadley 15mm
