We Sell Hadley hubs

SDH XL Rear 150mm X 12mm Conversion Kit

45.00

SDH XL Rear 150mm X 12mm Conversion Kit

45.00

Hadley Rear SDH XL Hub 150mm X 12mm Internal Axle Kit

For Hadley (SDH XL), H600150 150mm hubs (2001-2017) with Shimano style freehub

Hadley Part No. H500538-CLR

More Info

1 available
Add To Cart

Hadley Rear SDH XL Hub 150mm X 12mm Internal Axle Kit

For Hadley (SDH XL), H600150 150mm hubs (2001-2017) with Shimano style freehub

Hadley Part No. H500538-CLR

Note: Hub will have SDH XL or H600150 marked above the Hadley logo

Does not fit SDH or H600135 hubs

Fits Hadley hubs built between 2001 to 2017 (if your hub is 2018 and newer it will use the Shimano/XD 2018 conversion)

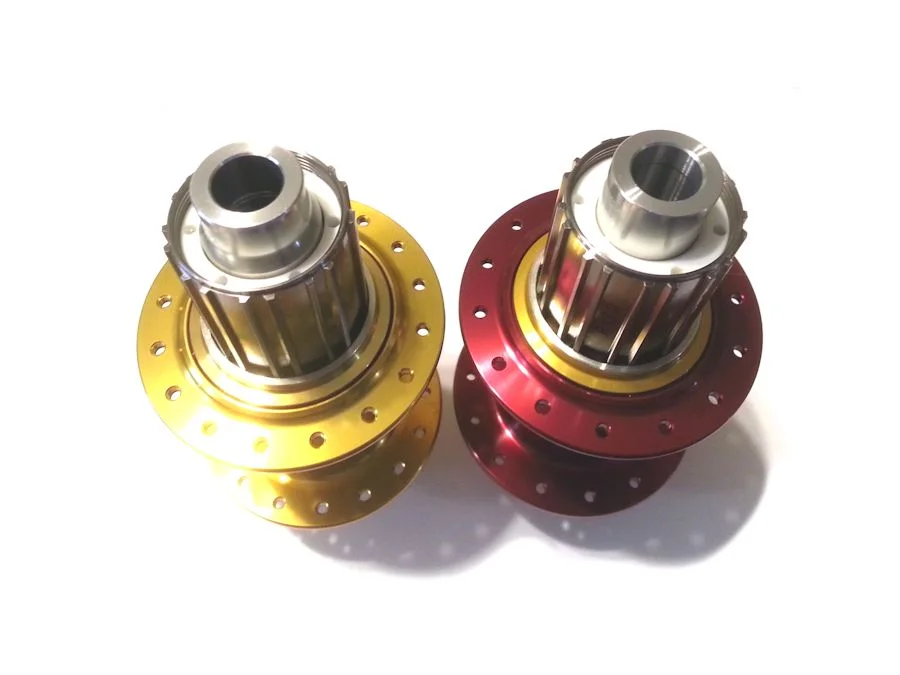

See photo of gold and red hub, the gold hub on the left is the 2001 to 2017 where the end cap tapers out to a larger diameter at the base, note the inside diameter of the white plastic retainer is larger where the six pin spanner holes are right next to the inside diameter. The red hub on the right has the 2018 and newer Shimano/XD freehub where the end cap is a straight cylinder and does not flare out to a larger diameter, also note the white plastic retainer has a smaller inside diameter and the six pin spanner holes are farther from the inside diameter. If you have the gold style hub this conversion will fit this hub, if you have the red style hub then you have the 2018 and newer Shimano/XD freehub and need the XD drive conversion H500608-CLR sold under the Hadley XD Driver (XX1/X0) Conversion Kits & Parts.

Special Tools Needed to install

Recommend using Hadley Tools to remove existing end caps.

To install use Hadley 16mm pin spanner wrench on drive side and

21mm open end C wrench on disc side
