SDH Rear 10mm Conversion Kit

71.00

SDH Rear 10mm Conversion Kit

71.00

Hadley Rear SDH Hub 135mm X 10mm Thru-Bolt Conversion Kit

Converts Hadley H500200 (SDH), H600135 (SDH 135) & H600405 (SS) hubs (2001-2017)

Hadley Part No. H500530-CLR (Kit includes 10mm thru-bolt and nut)

More Info

Quantity:
2 available
Add To Cart

Hadley Rear SDH Hub 135mm X 10mm Thru-Bolt Conversion Kit

Converts Hadley H500200 (SDH), H600135 (SDH 135) & H600405 (SS) hubs (2001-2017)

Hadley Part No. H500530-CLR (Kit includes 10mm thru-bolt and nut)

Note: Hub will have SDH, H600135 or SS marked above the Hadley logo

Fits Hadley hubs built between 2001 to 2017 (if your hub is 2018 and newer it will use the Shimano/XD 2018 conversion)

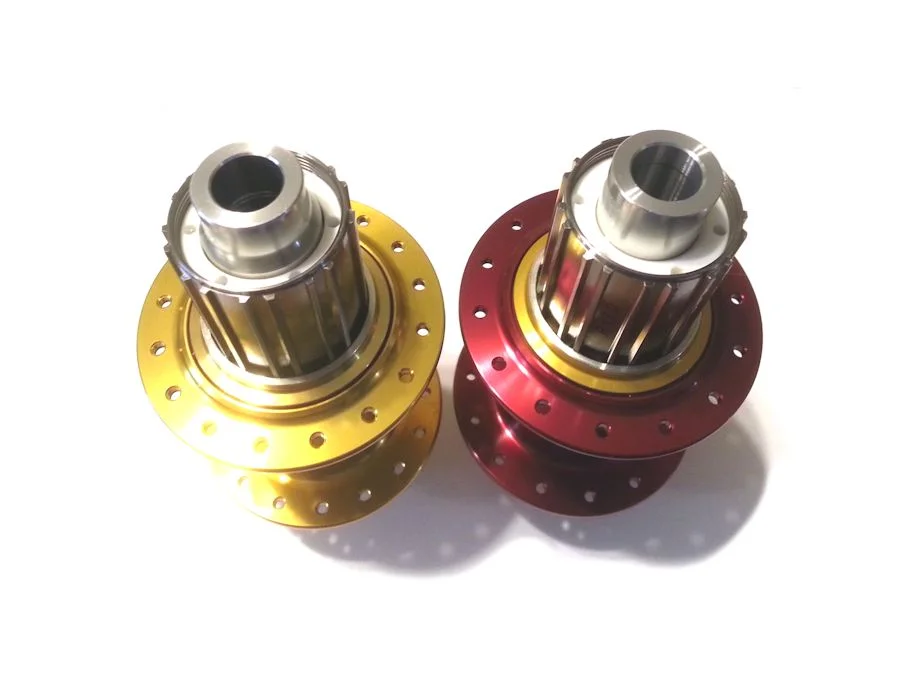

See photo of gold and red hub, the gold hub on the left is the 2001 to 2017 where the end cap tapers out to a larger diameter at the base, note the inside diameter of the white plastic retainer is larger where the six pin spanner holes are right next to the inside diameter. The red hub on the right has the 2018 and newer Shimano/XD freehub where the end cap is a straight cylinder and does not flare out to a larger diameter, also note the white plastic retainer has a smaller inside diameter and the six pin spanner holes are farther from the inside diameter. If you have the gold style hub this conversion will fit this hub, if you have the red style hub then you have the 2018 and newer Shimano/XD freehub and need the XD drive conversion H500602-CLR sold under the Hadley XD Driver (XX1/X0) Conversion Kits & Parts.

Does not fit 150mm XL hub

Will fit many frames with 10mm x 135mm spacing (standard dropouts).

Clamping range 148mm - 151mm (outside frame dropout dimension)

Check with your frame manufacturer

Special Tools Needed to install

Recommend using Hadley Tools to remove existing end caps.

To install use Hadley 21mm thin open end wrench on disc side and

16mm pin spanner wrench on drive side.
