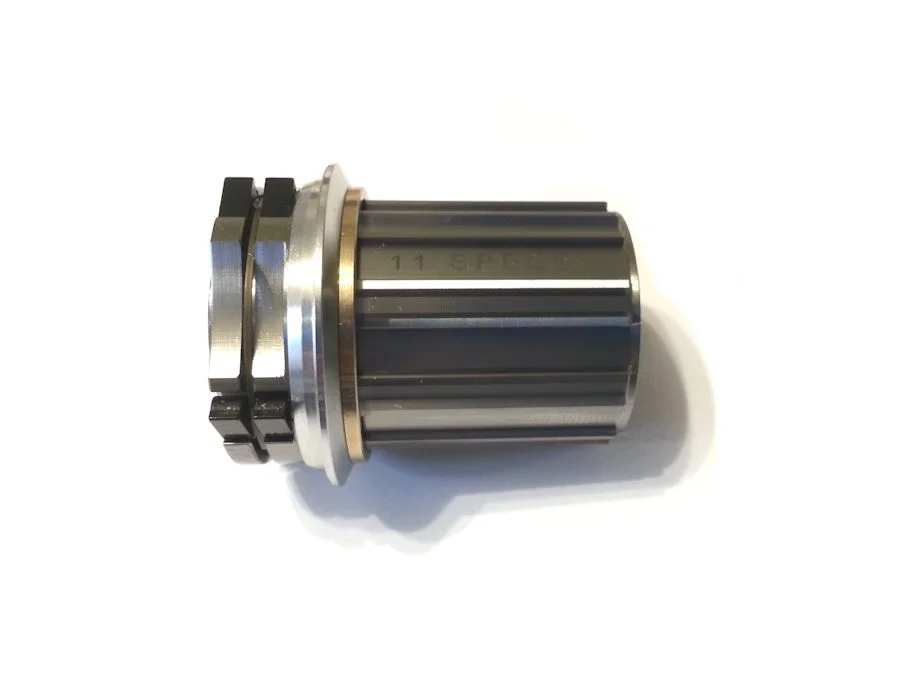

SDH Freehub Body 10/11 Speed

143.00

SDH Freehub Body 10/11 Speed

143.00

For Hadley SDH (2001 - 2017) Hubs 10/Shimano 11 Speed. This freehub body has 4 pawls and 72 point engagement. It can be used on older Hadley SDH 36 point engagement hubs. Both the older SDH 36 point engagement and the newer 72 point engagement hubs use the same 36 tooth gear but this 4 pawl freehub  doubles the engagement to 72.

Note: Hub will have SDH, SDH XL, H600135, H600150 marked above the Hadley logo

Clear Anodize Finish and 6AL-4V Titanium

Hadley Part No. FREEHUB-S11

Fits Hadley H500200 (SDH), H600135 (SDH 135), H600150 (SDH XL) Hubs. (Note: if your Hadley hub is a XD drive and want to convert to a Shimano style freehub it would be best to use the new 2018+ Shimano XD axle freehub.

More Info

1 available
Add To Cart

For Hadley SDH (2001 - 2017) Hubs 10/Shimano 11 Speed. This freehub body has 4 pawls and 72 point engagement. It can be used on older Hadley SDH 36 point engagement hubs. Both the older SDH 36 point engagement and the newer 72 point engagement hubs use the same 36 tooth gear but this 4 pawl freehub  doubles the engagement to 72.

Note: Hub will have SDH, SDH XL, H600135, H600150 marked above the Hadley logo

Clear Anodize Finish and 6AL-4V Titanium

Hadley Part No. FREEHUB-S11

Fits Hadley H500200 (SDH), H600135 (SDH 135), H600150 (SDH XL) Hubs. (Note: if your Hadley hub is a XD drive and want to convert to a Shimano style freehub it would be best to use the new 2018+ Shimano XD axle freehub.

For 8/9/10 speed leave gold spacer on. (Note older Hadley freehubs 2001 through early 2014 are 8/9/10 speed compatible).

For Shimano Road 11 Speed Cassettes  remove gold spacer, for Shimano mountain bike 11 Speed leave gold spacer on.

See photo of gold and red hub, the gold hub on the left is the 2001 to 2017 where the end cap tapers out to a larger diameter at the base, note the inside diameter of the white plastic retainer is larger where the six pin spanner holes are right next to the inside diameter. The red hub on the right has the 2018 and newer Shimano/XD freehub where the end cap is a straight cylinder and does not flare out to a larger diameter, also note the white plastic retainer has a smaller inside diameter and the six pin spanner holes are farther from the inside diameter. If you have the gold style hub this freehub will fit your hub. If you want to switch between Shimano or XD drive while using the same axle then you would want to get the new style 2018+ Shimano XD axle freehub and use it with the XD axle.
