Hadley Thru-Bolt 9mm X 100mm Spacing

$41.00

sold out

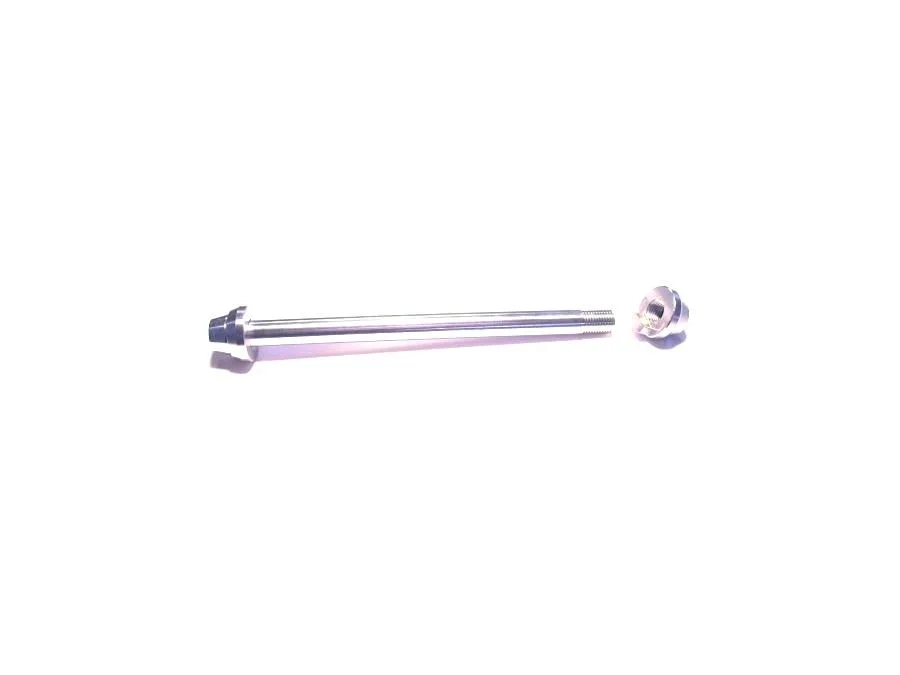

9mm Thru-Bolt (100mm spacing) + Nut

Aluminum bolt and nut with Clear Anodize Finish

Fits Hadley 9mm Thru-Bolt Front Hubs and any other 100mm x 9mm Thru-Bolt hubs. Bolt size 9mm x 1.25mm x 129mm long.

Uses one 6mm Bondhus/Allen wrench (hex key wrench) to install and remove, nut on right side has tab that fits in fork dropout to keep from spinning.

Hadley Part No: H500258-CLR

Add To Cart

9mm Thru-Bolt (100mm spacing) + Nut

Aluminum bolt and nut with Clear Anodize Finish

Fits Hadley 9mm Thru-Bolt Front Hubs and any other 100mm x 9mm Thru-Bolt hubs. Bolt size 9mm x 1.25mm x 129mm long.

Uses one 6mm Bondhus/Allen wrench (hex key wrench) to install and remove, nut on right side has tab that fits in fork dropout to keep from spinning.

Hadley Part No: H500258-CLR

Clamping range 113mm - 117mm (outside fork dropout dimension)

Fits most magnesium fork lowers with 6.36mm or thicker dropouts, some 4130 Cr/Mo forks with thinner dropouts

less than 6.36mm will not fit without adding a 9mm x 1.5mm thick washer

9mm X 1.25mm X 129mm

Torque to 12 - 14 Nm

Use grease on threads to prevent seizing and galling.
