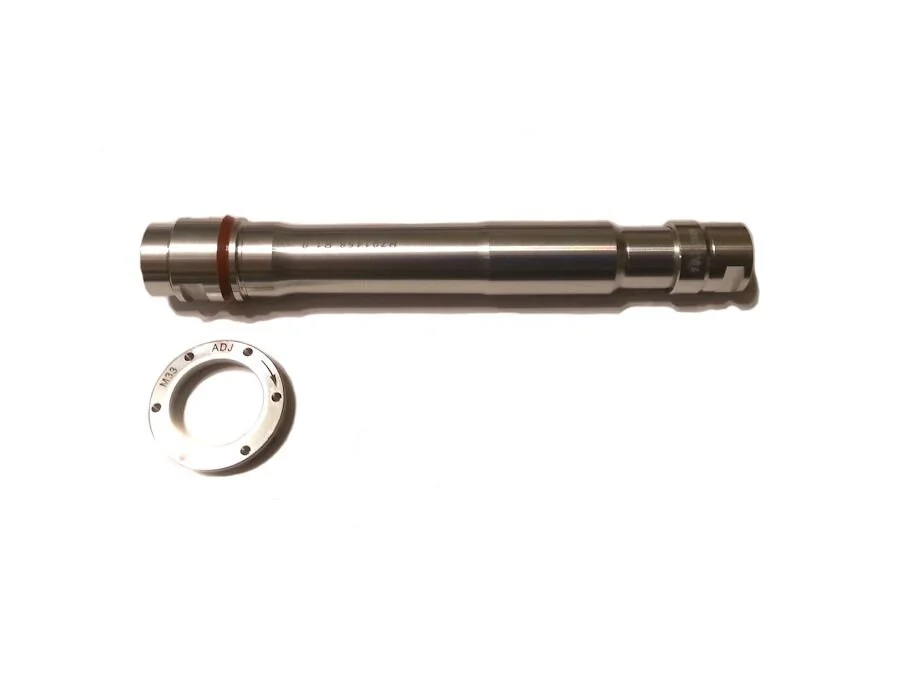

2020+ XDR/XD, Shimano 150mm X 12mm Conversion Kit

$50.00

Converts Hadley H600150 (SDH XL, SDH XL 150) Hubs to 2020+ XDR/XD Driver (XX1/X01) or 2020+ Shimano freeuhb 150mm X 12mm. Only works with Hadley 2020+ XDR/XD Driver freehub, or 2020+ Shimano Freehub

Note: Hub will have H600150, SDH XL or H700157 marked above the Hadley logo

Clear Anodize Finish

Fits Hadley H600150 Hubs that have a 2020+ freehub.

Hadley Part No: H700500-CLR

More Info ↓

1 available

Add To Cart

Converts Hadley H600150 (SDH XL, SDH XL 150) Hubs to 2020+ XDR/XD Driver (XX1/X01) or 2020+ Shimano freeuhb 150mm X 12mm. Only works with Hadley 2020+ XDR/XD Driver freehub, or 2020+ Shimano Freehub

Note: Hub will have H600150, SDH XL or H700157 marked above the Hadley logo

Clear Anodize Finish

Fits Hadley H600150 Hubs that have a 2020+ freehub.

Hadley Part No: H700500-CLR

Fits 2020 freehubs. The part numbers listed below are laser etched on the freehub body:

H701522 or H700522 Shimano style 10/11

H700528 Licenced Shimano Micro Spline 12 Speed

H701524 XDR/XD

Special Tools Needed to install

Recommend using Hadley 18mm and 15mm open end thin wrenches

or you can use a ParkTool 15mm PW-5 pedal wrench in place of the Hadley 15mm.

This kit comes with 2020 bearing adjustment ring with smaller inside diameter to fit the 2020 axle that requires Hadley 29mm pin spanner wrench or an adjustable pin spanner wrench.

Recommend using Hadley Tools to remove existing end caps.
